Oil press machine
Oil press machine/oil prepressing machine/oil press utilizes mechanical power to press oil from high-oil-content oil seeds, such as peanut, sunflower seed, rapeseed, soybean, cotton seeds,rice bran etc.
There're 2 types pressing machine, single-screw and double-screw pressing machine. Single-screw pressing machine is always used in small scale oil processing line, while double-screw pressing mchine is used in large scale oil processing line.With machanical power between screws or screw and machine body, oil seeds is pressed to thin cakes and oil comes out from oil seeds.

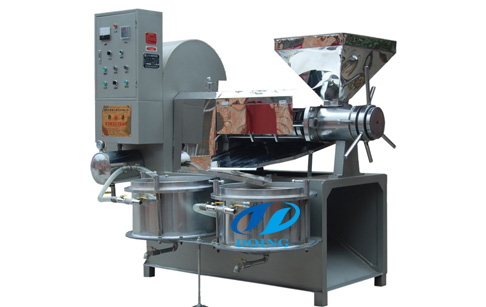

Oil press machine
Oil press machine
In general, after once pressing, the cake would be 5-10mm(depened on the material), and oil residue would be 5-10%(depended on material), which suits both solvent extraction and direct useage as animal feed.
Pressing machine/prepressing machine/oil press is always used in oil processing such as peanut, sunflower seed, sesame,etc. For small scale oil processing line and large scale oil processing line, machines needed are different.
Raw materials of this series of oil press machine we off:
Raw material of oil press machine
Features of oil press machine we offer:
1. Reasonable structure
2. Stable performance prepressing machine
3. Easy to operate and maintain
4. High efficiency and energy saving
Technical parameters of oil press machine:
| Type | 6YL-60 | 6YL-70 | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-150 |
| Screw diameter (mm) | 55 | 65 | 80 | 100 | 120 | 150 |
| Screw speed (r/min) | 52 | 48 | 63 | 43 | 36 | 33-42 |
| Power (main frame) (KW) | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Vacuum power (KW) | 0.55 | 0.75 | 0.55 | 0.75 | 0.75 | 4 |
| Heater (KW) | 0.9 | 1.8 | 3 | 3.5 | 4 | 4.5 |
| Handling capacity (kg/h) | 30-60 | 50-80 | 80-150 | 150-250 | 250-350 | 300-450 |
| Weight (kg) | 220 | 280 | 500 | 850 | 1300 | 1950 |
| Size (mm) | 1200x780x1100 | 1400x860x1260 | 1650x1500x1700 | 1700x1600x1750 | 1800x1700x1750 | 2380x1850x2000 |
Our engineer can help you choose the most suitable machine for each customer according to material and requirements. If you want toknow more about oil processing, please do not hesitate to contact us.
