Edible cooking oil extractor

There are usually two types of edible cooking oil extractor in cooking oil solvent extraction plant. One is loop type oil extractor and another is rotocel oil extractor.

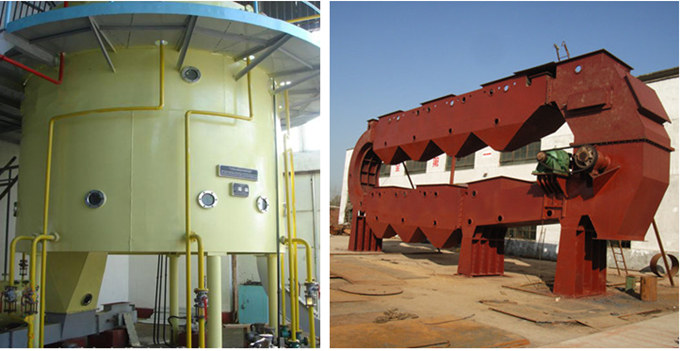

Edible cooking oil extractor

1.Edible cooking oil extractor: Loop Type Oil Extractor
The loop type oil extractor adopts a chain driving system. It is one potential extraction method available in the solvent extraction plant. The new loop-structure ensures less power consumption, less maintenance, and reduces noise. The rotation speed of Loop-type extractor can be adjusted automatically according to incoming oilseed's quantity to ensure that the bin level is stable. This will help to form micro negative-pressure in the edible cooking oil extractor to prevent the escape of solvent gas.

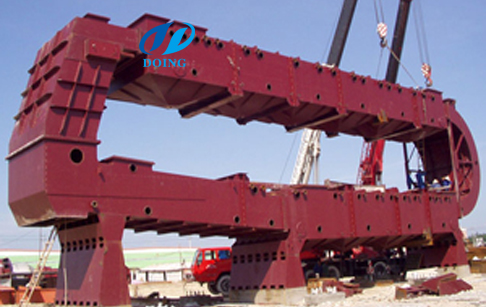

Loop type oil extractor

Features of the loop type oil extractor:
1. The loop type oil extractor is designed with a chain drive, frequency controlled motor speed, unique circular structure, low rotating  speed, low power consumption. It runs smoothly and silently with low maintenance costs.
2. An advanced miscella circulating schematic design decreases the need to input fresh solvent. The residual oil in dregs of rice is  reduced, improving the miscella's concentration. Energy is saved by cutting down on
evaporation.
3. The material bed in the loop type oil extractor is low and uses percolation leaching.

4. To prevent dead spots in the leaching process, materials at the curved section will be turned. In cases of significant dregs in the  miscella is high, the dregs are effectively disposed of before entering the evaporation system.

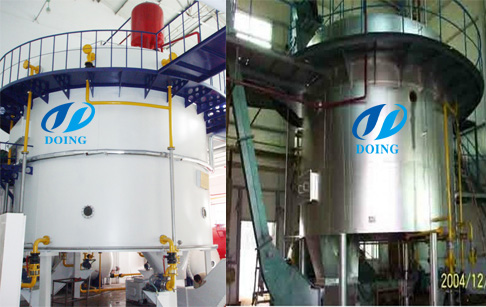

Rotocel oil extractor

2. Edible cooking oil extractor: Rotocel Oil Extractor
The rotocel oil extractor is popular for various pre-pressed oil cakes. Its rotating cell design at the top bin level makes it  easy to perform  immersion extraction and to reduce the number of meal fines in the miscella.This improves the quality of the crude oil by reduced scaling in evaporation system. The extractor is driven by gear rack. The unique balancing rotor is designed to ensure less power consumption, lower maintenance costs and less noise.

Features of the rotocel oil extractor:
1. The oil seed extractor adopts a rack driving system. The unique rotor balancing process ensures less power consumption, less  maintenance and less noise.
2. The rotation speed of the air lock and rotor extractor can be adjusted automatically according to the incoming oilseed quantity to  ensure that the bin level is stable. This will help to form micro negative pressure in the oil seed extractor and prevent solvent escaping from the oil extractor.
3. Miscella circulation is improved to reduce solvent usage, solvent residue in meal and to increase the miscella concentration.

Energy  is saved by reducing evaporation.
4. The rotating extractor is popular for many kinds of pre-pressed cake. The rotation cell at the upper bin level makes it  easy to  perform immersion extraction and reduces meal fines in the miscella.

All this will help improve the quality of crude oil and reduce scaling in the evaporation system.

Feel free to contact us to get further info about edible cooking oil extractors and just choose the right one for your need!
