Palm oil milling machine

Henan Doing Company can manufacture 1-600tph palm oil milling machine, which uses the unique and novel designing of the sterilizer, which optimizes the efficiency of thermal conditioning. And digesting of palm fruits before palm oil pressing can effectively increase the palm oil yield.

Screw palm oil press machine of Doing Company

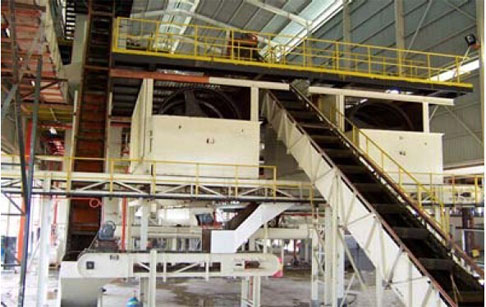

The whole set of palm oil milling machine includes five parts: palm fruit sterillization, palm fruit threshing, palm fuit digesting, palm oil pressing, palm oil clarification. The continuous double-screw palm oil press machine of Doing Company and the hydraulic automatic control system for adjusting the pressure inside  the press cage ensure high pressing efficiency, low oil residue in cake mash and low breakage of palm nuts.

The detailed introduction of each part of palm oil milling machine:

1. Sterilizing section:

The purpose is to destroy lipase in the flesh palm fruit and avoid the content of FFA in oil further increase. The use of high temperatures to cook soft fruit bunches and sterilization (145 ℃ ,90-120 minutes), easy to separate fruit  bunches fruit, soft fruit, increasing the humidity of the fruit.

2. Threshing section:

FFB has softened in sterilization process. After machine and screening beating off the fruit, palm fruit and empty fruit bunches (EFB) separation.

Palm fruit threshing machine

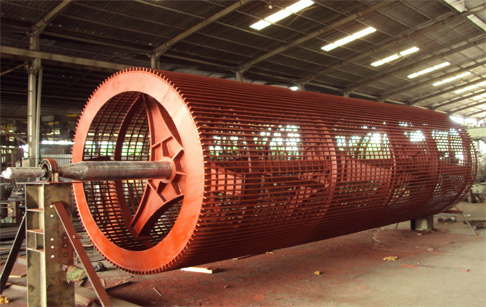

Palm fruit threshing machine inside part

3. Digesting section:

It is used for heating and cooking the palm fruit, to make it suitable for pressing, doing like this can help final user get the maximum oil and good quality cakes.

4. Pressing section:

We select the best quality palm oil press machine in domestic, it is improved on the base of YL series oil expellers, the service life is more longer, the operation cost is low, and the cake is loose but not splintery, the most important is the oil residue is low.

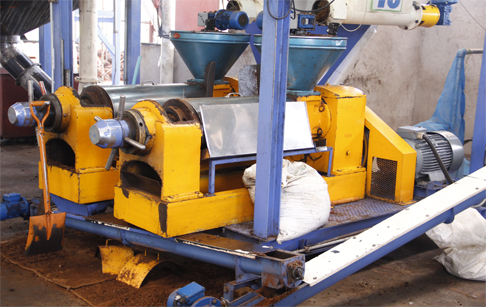

Palm oil press machine

5. Filtering section:

After pressing by palm oil milling machine, there are some oil dregs in the crude oil. And after clarifying, we need to filter the crude oil to avoid to jam the oil pipes during refining processes.

Henan Doing Mechanical Equipment Co., Ltd is one leading producer of palm oil milling machine in China, also one unit exempt from quality examination. We are committed to bringing in new technology and renewing products. If you are planning to buy palm oil milling machine, please contact us!
