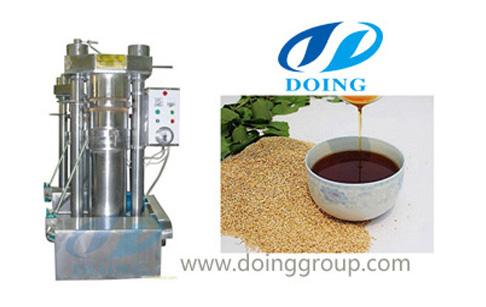

Hydraulic sesame oil press machine
Hydraulic sesame oil press machine can produce pure and assured sesame oil. And the whole oil expelling process is visible, only needs about 5-7 minutes. Hydraulic sesame oil press machine is quite suitable to individual households and small oil mills in the countryside due to its little room occupancy and high pressing speed.
Besides, it is also available to peanut/groundnut, corn/maize germ, sunflower seeds, cotton seeds, rice bran seeds, pumpkin seeds, kiwi seeds, tea seeds and almonds.
Hydraulic sesame oil press machine
Sesame oil press machine is mainly composed of automatic control system, heat pressing system, adjusting system, vacuum filtration system five major part.
1. The automatic control system consists of a heating switch, time controller, automatic temperature control instrument, de-pressure switch, etc.
2. Heat pressing system consists of a heater, main cylinder, metal head, etc.
3. The hydraulic engine system consists of the main shaft and the high and low-pressure bolt, gear shaft, motor, etc.
4. Vacuum filtration system consists of the vacuum compressor, two refinery tanks, oil output lever, etc.
Technology date of hydraulic sesame oil press machine:
| DY- A Type | DY- B Type | |
| Processing capacity | up to 35 kg/h | up to 35 kg/h |
| Residual oil content press cake | 6,5 - 10 % | 6,5 - 10 % |
| Oil temperature at outlet | 35 - 40 °C | 35 - 40 °C |
| Cake temperature at outlet | 40 - 50 °C | 40 - 50 °C |
| Dimensions(LxWxH) | 700 x 850 x 1400 mm | 700 x 800 x 1400 mm |
| Weight | 820 kg | 785 kg |
| Motor rating | 2.0 kW | 1.8 kW |
| Power supply | 3 Phase, 50,60 Hz, 380,415 V | 3 Phase, 50,60 Hz,380,415 V |
| Single batch capacity | Up to 7kg | Up to 7kg |
The advantage of hydraulic sesame oil press machine:
1. This sesame oil press machine is able to bee used for both hot pressing and cold pressing.
2. After pressing, you can get superior quality of sesame oil and cake.
3. Base and bodies are fabricated from mild steel and stainless steel.
4. Working process is quite smooth, and it is easy maintenance.
5. It is the best choice to be used in sesame oil mill plants.
Henan Doing Company manufactures different kinds of cooking oil press machine. If you want to buy sesame oil press machine or other kind of equipment, contact us! Our engineers will give you the best choice.
