Small scale palm kernel oil mill plant

We are professional palm kernel oil mill plant manufacturer, who can provide complete palm kernel oil mill plant with input capacity 1-1000tpd. Here I mainly introduce 1tpd small scale palm kernel oil mill plant.

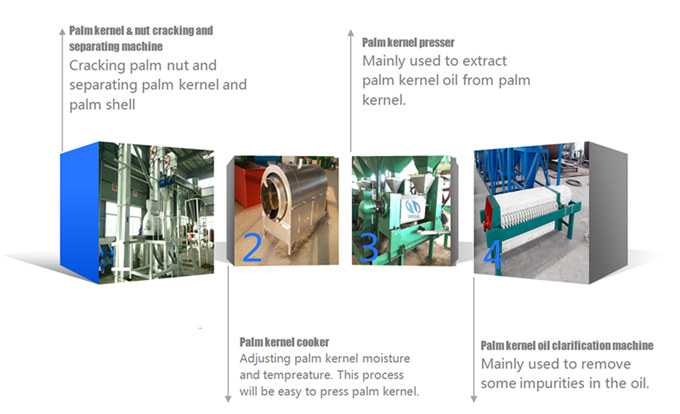

As the video shows, the total small scale palm kernel oil mill plant includes five main machines: palm fiber polishing machine, palm kernel cracking machine, palm kernel cooking machine, palm kernel oil expeller machine and palm kernel oil filter machine.

Small scale palm kernel oil mill plant

Main machines in small scale palm kernel oil mill plant:

After palm fruit is pressed, we can get crude palm oil and palm nuts(with fibre). So if you want to produce the palm kernel oil, you should have the palm fiber polishing machine, which is mainly for removing the fiber in the palm nuts' surface.

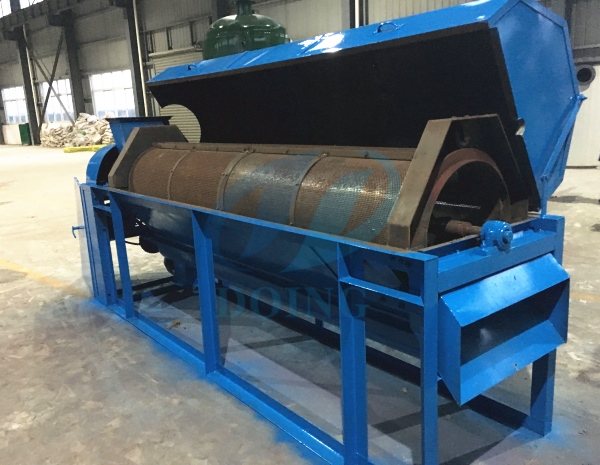

Palm fiber polishing machine

Then the clean palm nuts will be cracked by palm kernel cracking machine.

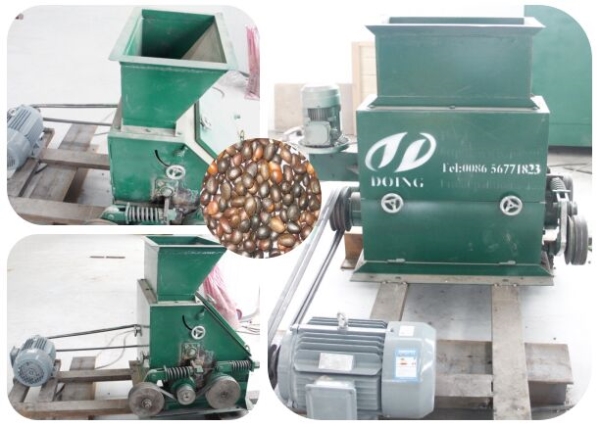

Palm kernel cracking machine used in small scale palm kernel oil mill plant

Such cracking machine can only crack the nut, and you will get the mixture of palm kernels and shells. If you want to get palm kernels, you need workers to select them from the mixture or add other cleaning sieve to cooperate. Besides, we also manufacture palm kernel cracking and separating machine.

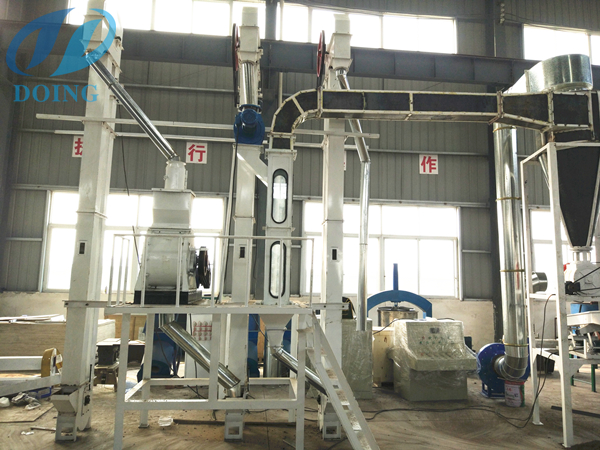

Small scale palm kernel cracking and separating machine

This small scale palm kernel cracking and separating machine is designed by our engineers based on the technology of large palm kernel oil mill plant. It is suitable for small scale palm kernel oil mill plant. Through this machine, you can get clean palm kernels, labor saving and automatic working process.

After cracking the palm kernel, palm kernel oil expeller machine will be used.

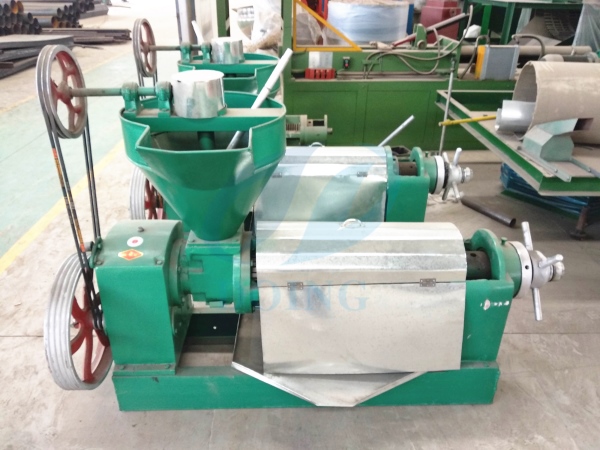

Palm kernel oil expeller machine

At last, the oil filter machine is necessary to deal with crude palm kernel oil.

Oil filter machine used in small scale palm kernel oil mill plant

Another method to produce palm kernel oil--solvent extraction plant

Palm kernel oil extraction process:

Palm kernel oil solvent extraction plant is another method used in palm kernel oil mill plant. Product (cake from palm kernel pretreatment section) is carried into solvent extraction plant. There are still much oil in cakes. Solvent sprays onto cake so that palm kernel oil can be easily extracted. Then we can get high yield palm kernel oil. (Solvent extraction method is suitable for more than 20tpd capacity palm kernel oil mill plant)

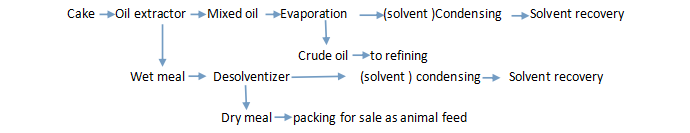

Flow chart of palm kernel oil solvent extraction process:

Palm kernel oil solvent extraction process

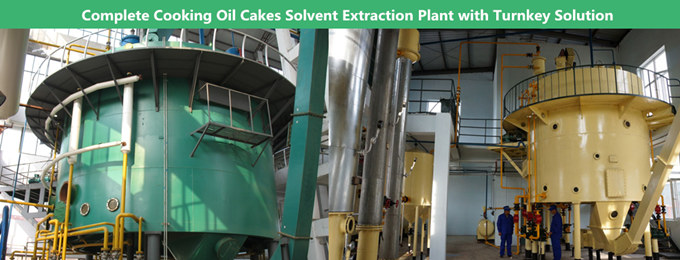

Solvent extractor in palm kernel oil mill plant:

Main equipment in palm kernel oil sovent extraction plant

Palm kernel oil refining plant:

Palm kernel oil refining machine is a process to remove unwanted and undesirable elements from the crude palm kernel oil. The elements that are removed include the Free Fatty Acids, Phospholipids, Gums,Odour, Color, Waxes etc. Palm kernel oil refining machine makes the palm kernel oil clean and pure and improves the overall quality of the oil.

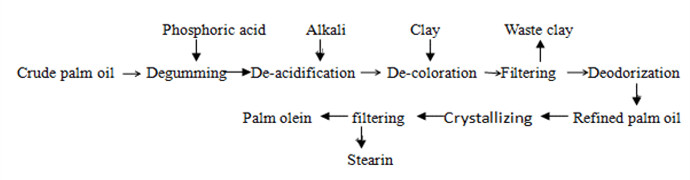

Flow chart of palm kernel oil refining process:

Palm kernel oil refining process

Palm kernel oil refining workshop:

Palm kernel oil refining machine

Now, small scale palm kernel oil mill plant is very popular. Henan Doing Company can help you to design your palm kernel oil mill plant. We can provide palm kernel oil mill plant with different kinds of configuration, and you can choose according to your needs. Welcome to leave your message, and we will contact you soon.
