Introduction of the process and machine used in oil palm mill plant

The palm oil processing process is a complicated process, which involves a series of steps: raw material reception, sterilizing, threshing, digesting, pressing, clarifying & drying. The processing machine used in oil palm mill plant have subtle difference depending on the different processing capacity. Next, let me, a veteran, introduce to you the palm oil processing process and the processing machine used in oil palm mill plant.

Small scale palm oil mill plant

The introduction of the palm oil processing process:

Step 1 Raw material reception

Collecting the ripe fresh oil palm fruit bunches from the plantation and transported by trucks, then pour the FFB into the loading ramp after weighed by weighbridge.

Step 2 Sterilizing

The palm bunches are fed through a screw conveyor into the sterilizer where they are steamed at high temperature to break the enzymes in fruit, and to avoid the increasing of the FFA content ofoil. On the other hand, the high temperature makes the fruit soften, it is easy for threshing.

Step 3 Threshing

After sterilizing, the prepared palm fruit bunches will be sent into the drum type thresher. It can easily separate the fruit and the bunches during rotating process.

Step 4 Digesting

In digesting process, the palm pulp and nut will be separated, and the palm fruit will be crushed, even be destroyed its tissue.

Step 5 Pressing

After digesting, the palm fruit is pressed in the palm oil double screw press. It can yields two components: a mixture of oil, water and solid impurities and a press cake (a mixture of fibre and kernels).

Step 6 Clarifying & drying

The clarification equipment separates the crude palm oil from the mixture of oil, water and solid impurities and removes other impurities. After clarification, use oil drying system to dry the crude palm oil and pumped it into storage tanks.

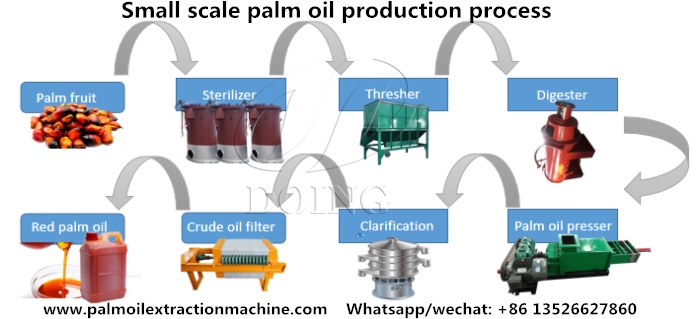

Small scale palm oil production process

The processing machine used in oil palm mill plant

Depend on the daily processing capacity of your plant, the processing machine used in oil palm mill plant have subtle difference. If your daily capacity is small, Henan Glory Company engineer suggest that you can choose a simple thresher, single screw palm oil presser and a frame filter to make up a simple palm oil production line. These equipment is sufficient to meet the daily production needs of the oil palm mill plant.

But if your daily capacity is between 10-120 tons/hour or even larger, our engineer suggest that you should choose a complete set of palm oil processing machine. It including sterilizer, drum type thresher, digester, palm oil presser, clarification equipment (rotary vibrating screen, clarification tank , plate filter) and vacuum drying system. Of course, if want to get a higher quality palm oil, you can equip it with refining equipment and carry out deep processing to further enhance the quality and market value of the palm oil.

Production line of palm oil processing machine

Henan Glory Company, as a leading manufacturer of palm oil processing machine, has a rich experience in designing and manufacturing various kinds of palm oil processing machine. No matter what scale of palm oil processing machine you need, Henan Glory company can make the most cost-effective purchase plan for you. Please contact us if you want to know more details!
