Tyre pyrolysis plant for sale

Date:2013-06-20 21:57:14 / Pyrolysis Plant / Give me the price/Leave a message

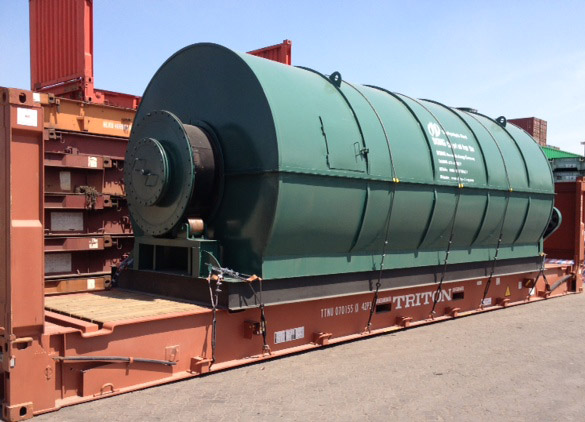

Tyre pyrolysis plant to be shipped abroad at Qingdao Port

Tyre pyrolysis plant to be shipped abroad at Qingdao Port

Tyre pyrolysis plant for sale
Type:DY-1-10
Processing Capacity:10T tires/24h
Reactor Size:D2600mm*L6600mm

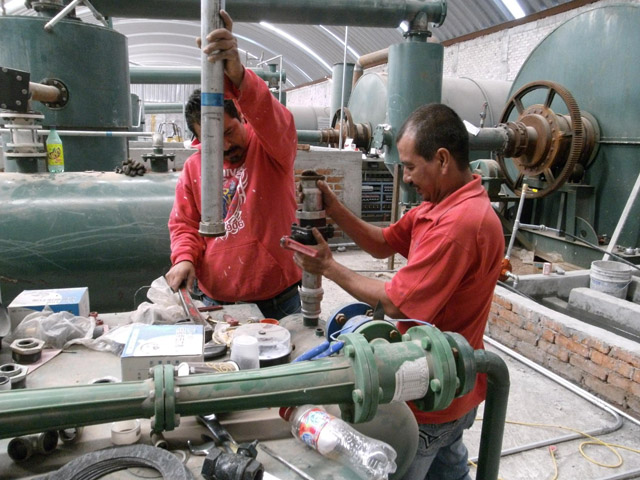

The scene of tyre pyrolysis plant  in Mexico

Tyre pyrolysis plant could be able to Automatic feeding, automatic slag, automatic alarm, automatic decompression, automatic adjustment of negative pressure, exhaust automatic recovery. Only need two workers to control the whole system, can save your cost.

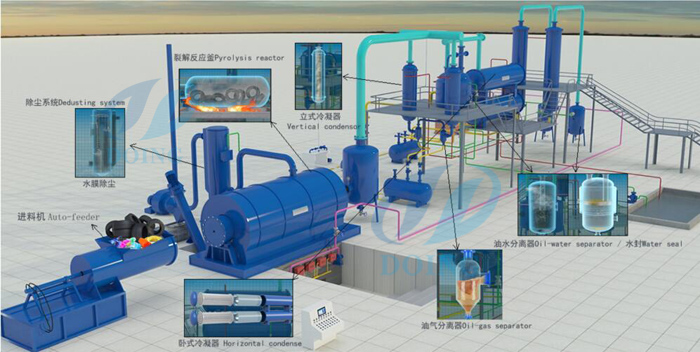

Tyre pyrolysis plant pyrolysis waste tyre to fuel oil  Working process:

Tyre pyrolysis plant pyrolysis process waste tyre to fuel oil

1) feed the raw material into furnace automatically or manually, then seal the feed inlet system.
2) heat the reactor by burning the fuel material(coal,or wood,or natural gas ,oil ) in the combustion system.
the reactor will slowly become heat ,when the temperature reach around 250 degree Celsius, the oil gas will be formed.
3) After processed by our technology, the oil gas will go to cooling system for cold liquid oil.
the gas which can not become liquid under normal pressure , will be designed to go back to combustion system through safety device instead of the fuel material to burn the reactor, which is environmental friendly and can save you much energy.
4)After finished oil produce ,the temperature of reactor will be down,while,carbon black can be discharged automatically.
5) when the temperature fall down to 100 degree Celsius,worker could opened the door of reactor to discharge of steel wire.
6) Then can start to another batch working.

Technical parameter of tyre pyrolysis plant
NO.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	tires/Plastic	tires/Plastic	tires/Plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7ton	3.6 ton	4.5 ton
6	Operating pressure	Normal	Normal	Normal
7	Marerial of Ractor	Q245R	Q245R	Q245R
8	Thickness of Ractor	14mm	14mm	14mm
9	Rotate speed of Ractor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	12KW	12KW	12KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of  condensor	40㎡	40㎡	53㎡
14	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
16	Noise dB(A)	≤85	≤85	≤85
17	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
18	Working form	Intermittent opration	Intermittent opration	Intermittent opration
19	Delivery time	20days	20days	20days
20	Weight	27T	30T	35T
