Waste rubber tire oil pyrolysis plant
Annually, more than 250 million scrap rubber tires are discarded in the United States. After long and faithful service on family cars, long-haul trucks, construction equipment, agricultural and logging equipment, or in a variety of other applications, scrap rubber tires can no longer safely perform the tasks for which they were originally designed. Then the proper management of scrap rubber tires becomes a major solid waste management issue.
Waste rubber tire oil pyrolysis plant
Fortunately there are many sound markets for scrap rubber tires markets which are both environmentally and economically sound. These include the use of scrap rubber tires as a fuel in a variety of energy intensive industries, the use of whole or processed rubber tires in civil engineering applications, and also the grinding of scrap rubber tire into a granular form to be used as a basic material in the manufacture of other products.
The working process of waste rubber tire oil pyrolysis plant is as follows:
Rubber tire oil pyrolysis plant pyrolysis waste rubber tire oil to fuel oil ,carbon black and steel wire

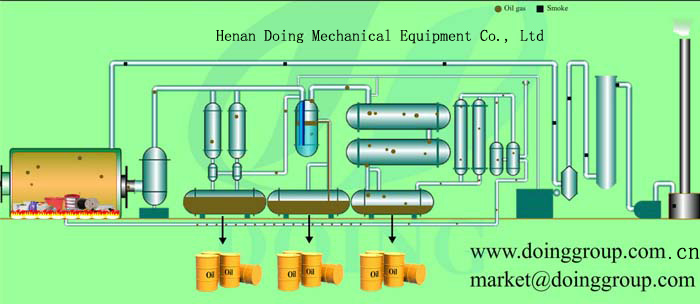

Feeding the raw material into the reactor by manual or auto feeder, then fire the fuel to heat the reactor. After the temperature increase to relevant degree, the oil gas will be generated and enter the gas separator. Here, the heavy components will be liquefied and drop into the heavy oil tank. And light oil gas will rise into the oil condenser being liquefied and get into the oil tank. The unliquefied combustible gas enter the hydroseal , in here , after desulfuration and purification, one part of it will be recycled to heat the reactor, another part will be burn out to reduce the pressure while the pressure is too high.
1.Fuel Oil (45% to 52%)
The main application of oil products produced by our Waste rubber tire oil pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

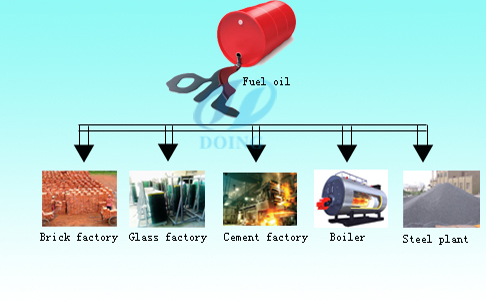

Fuel oil application
The main application of oil products produced by our Waste tyre to fuel oil pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.
Steel Wire (12% to 15%) Waste tyre to fuel oil pyrolysis plant is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.
Carbon Black Powder (30% to 35%)

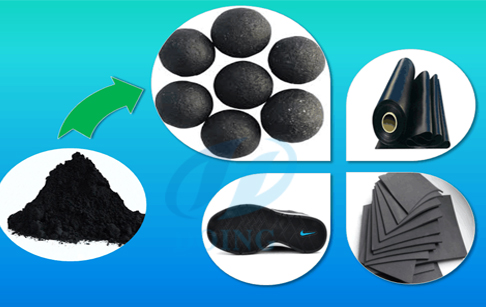

Carbon black application
The second product of waste rubber tire pyrolysis plant is carbon black. The quantity of carbon black is about 30% to 35% according to ruber tire quality. The use of carbon black is as a chemical strengthener in rubber and coloring agent in pigment industries. This carbon black price is very competitive compare to petroleum carbon black, so our pyrolysis carbon black is good option in stead of petroleum carbon black.
