In cooking oil solvent extraction plant, the first machine used is extractor. There are two main kinds of extractor of Doing Company, Rotocel extractor and Loop-type extractor. This article is mainly to introduce rotocel extractor.
Rotocel extractor in cooking oil solvent extraction plant
Features of rotocel extractor in cooking oil solvent extraction plant:
1. Henan Doing Company rotocel extractor is horizontal in structure. Compact structure, high material layer, reliable operation and low power consumption; The major parts of extractor have adopted stainless steel to fix grid plate and increase the horizontal grid plates, which can prevent the miscella from flowing back to the blanking case in order to guarantee good extraction effect.
2. The rotocel extractor is with low rotating speed, low power, easy operation, without noise and low maintenance cost.
3. The miscella circulation process is to reduce the fresh solvent inputs and the residual oil in meal. This advanced design is benifical to increase the miscella concentration and save energy by shortening the evaporation capacity. High extraction efficiency and mixing oil concentration is high.

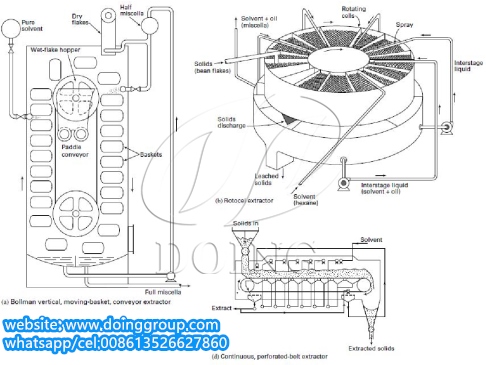

The inner structure of rocotel extractor
Working process of rotocel extractor:
When working, the oil seeds or cakes are first sent into the rotocel extractor. Then the solvent will be completed the cycle spray, and finally drained out meal, forming a cycle to achieve continuous production.
The technology requirements of rotocel extractor of oil extraction machine:
| 1. The material temperature dip 50-58 ℃, leaching temperature above 50 ℃; |
| 2. The solvent temperature 50-55 ℃; |
| 3. Extractor operating cycle 75-120min; |
| 4. Soluble material ratio of 1: (0.7-1.3); |
| 5. The amount of solvent wet meal containing 15% -40%. |
Generally speaking, in cooking oil solvent extraction plant, the rotocel extractor is commen used. Henan Doing Company will according to your requirement to design the capacity of rotocel extractor. And Doing Company also provide the whole cooking oil solvent extraction plant designing and installation service. Any question, please contact us!
