Plastic oil distillation plant can convert plastic oil into plastic diesel. The plastic oil here refers to the plastic pyrolysis oil obtained from the plastic pyrolysis plant. The plastic diesel is a very good diesel which is very close to common diesel. It can be used in diesel generator, tractors, trucks, agricultural vehicles etc.

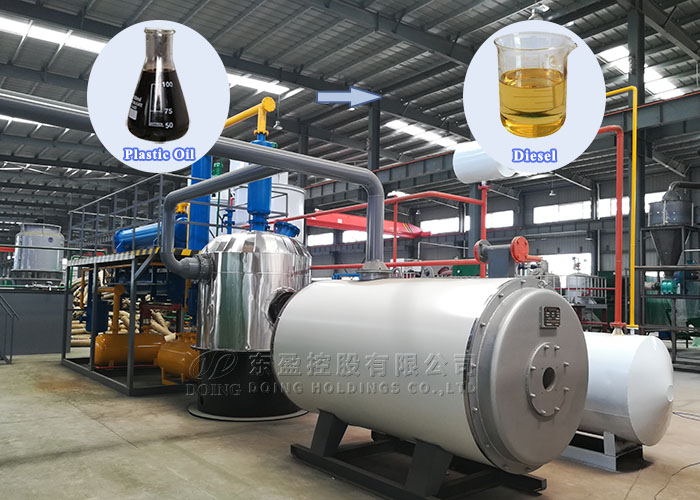

Plastic oil distillation plant
Working process of plastic oil distillation plant
Plastic pyrolysis oil will be heated into oil gas with indirect heating in distillation reactor. Then oil gas will be cooled into diesel by cooling system. With the processing of color and odor removal system, diesel quality will be improved a lot.
Flow chart of plastic oil distillation plant
Main features of plastic oil distillation plant
1. Fast
The unique fast heating system is especially designed for shorten working time.
In market, mostly are horizontal reactor or old design for plastic pyrolysis oil will be heated into oil gas with indirect heating. Our plastic oil distillation plant will be fast, which will take about 3-5days to finish one batch.
2. Easy slagging
Vertical reactor make slagging from bottom automatically and fast. It is easy to clean.
3. Energy saving
Fast heating system keep temperature even after slagging and you can use for next batch which can achieve energy saving.
4. Safe
Strict quality control system and professional safety devices guarantee our plastic pyrolysis oil will be heated into oil gas with indirect heating. Plastic oil distillation plant can run safely and win a good reputation from customers.
5. Environmental friendly
Our plastic oil distillation plant designed with professional dedusting systems which can ensure plastic oil distillation plant does not pollute the environment during the whole working process.
Technical Parameters of Plastic Oil Distillation Plant
| Technical parameters of plastic oil distillation plant | ||
| NO. | Items | Contents |
| 1 | Capacity | 5T/D, 10T/D, 15T/D, 20T/D |
| 2 | Raw material | Tire/plastic pyrolysis oil, waste engine oil |
| 3 | Structural form | Vertical |
| 4 | Outputs | Diesel, asphalt |
| 5 | Diesel yield | 80-85% |
| 6 | Operating pressure | Normal |
| 7 | Material of Reactor | Q245R boiler plate |
| 8 | Thickness of Reactor | 16mm |
| 9 | Safety standard | Pressure vessel standard |
| 10 | Total power | 24.5KW |
| 11 | Mode of cooling | Recycled water cooling |
| 12 | Required water | 40m3 for recycle use |
| 13 | Heating method | Recycled conduction oil heating with fuel heating |
| 14 | Discharge way | Automatically |
| 15 | Noise dB(A) | ≤85 |
| 16 | Running process | Semi-continuous |
| 17 | Delivery time | 20days |
| 18 | Weight | 20-50T (depends on the capacity) |
