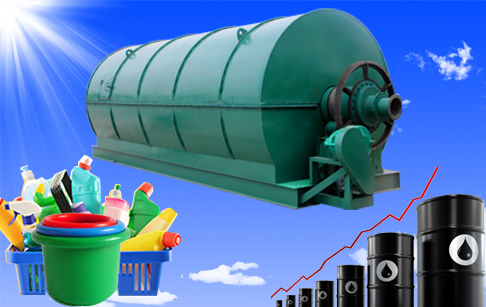

Plastic to oil conversion machine
The plastic to fuel conversion machine can be also called plastic pyrolysis process. The plastic waste will be eventually converted into fuel oil, carbon black and some gas by pyrolysis plant.

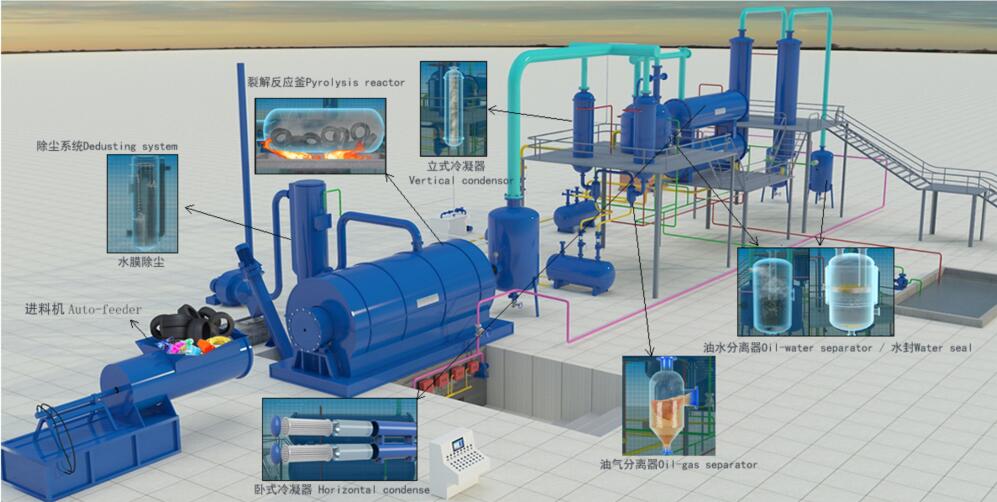

Plastic to oil conversion machine conversion waste plastic to oil
1.Put dried plastic waste into reactor and the quantity shall be controlled under 2/3 of reactor for rotating more smoothly. Then close the feeding door.
The plastic to oil conversion machine includes two stages. From 100℃ to 250 ℃ is the preliminary stage. The light oil gas shall be released at 100 ℃ and fluid oil shall be released at 120℃ .
From 280℃ to 350℃is the top output rate interval. Oil gas will be collected into manifold, heavy particles and oil will be gathered and liquefied in center of manifold and drop down into the heavy oil tank. The lighter gas will rise up to the multi-functional oil condensers, then be liquefied into oil and stored in the oil tank. The incondensable gas through de-sulfuration and de-dusting by hydroseal will be led to heat the furnace for reducing the energy cost.
Cool down the plastic pyrolysis reactor after the process. Carbon black will be discharged automatically when the temperature falls down to 50-70 degrees.
Pyrolysis oil (tire oil/plastic oil)
Pyroysis oil application
1. Add it into heavy oil generator to produce electricity.
2. Used as heating material.
3. Sell it into oil refining factory to further process it. Ceramic factory, glass factory, electric power factory, steel making factory, boiler factory…etc.
Carbon black from waste plastic to oil conversion
Carbon black application
A.electric cable jacketing
B.conveyor ban
C.hose and doormat
D.black nylon bag
E.rubber additive
F.automatic spare parts
G.heat isolation
H.black colorant in rubber materials
