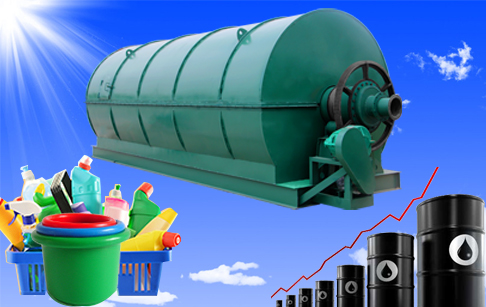

Pyrolysis plastic to oil machine
Pyrolysis plastic to oil adopts the pyrolysis technology to achieve the plastic waste to fuel oil conversion. The Pyrolysis plastic to oil is a chemical process of breaking down large molecules of plastic into smaller molecules of oil, gas and carbon black.
Pyrolysis plastic to oil working process
Step -1
Put plastic material into the pyrolysis reactor by mechanical feeding machine or manual, then it is delivered into the store bin with the help of conveyor belt. Then, close the feeding door and open heating system of the machine.
Step – 2
In this step, two stages are there in the process. The primary stage: the heat energy needs to start with 100 degree Celsius and ending with 250 degree Celsius. In 100 degree Celsius, the oil gas will release and in 120 degree Celsius the liquid oil will release. The secondary stage: the heat energy needs to change from 250 degree Celsius towards 280 degree Celsius; it is the peak output rate. The oil gas will be collected into the manifold, and the oil as well as the weighty particles are accumulate and dissolved in the center of the manifold and drop into the deep oil container (oil tank). And the lighter oil gas will certainly go up to multifunctional oil condensers to liquefy into oil and keep in the tank.
Step – 3
Cool down the pyrolysis plastic to oil after the completion of Step-1 and Step-2. Once the heat reaches about 40 degree Celsius, the carbon black will be discharged automatically.
