Before you intend to buy plastic to oil machine machine, the most important thing is that you have to choose a professional plastic to oil machine manufacturer. Henan Doing produced plastic to oil machine adopts the latest pyrolysis technology, which can convert plastic waste into fuel oil, carbon black, some combustible gas.

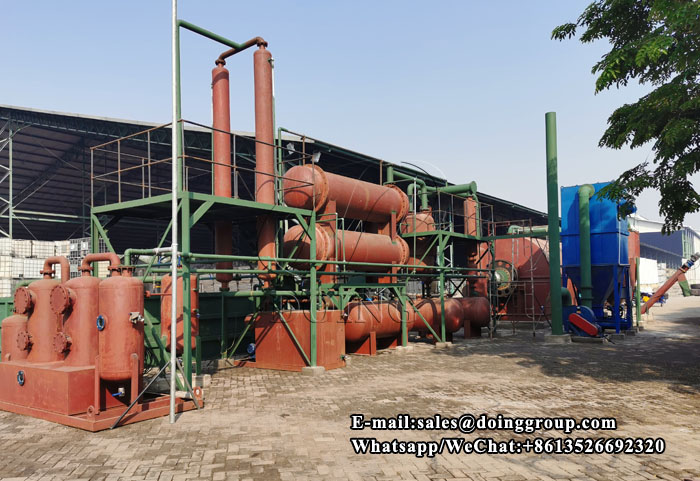

Plastic to oil machine

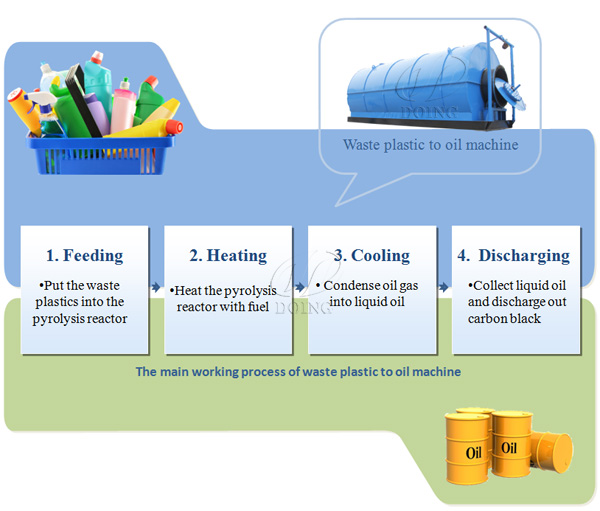

Waste plastic to oil production process
First of all, break and dry the waste plastic; Then convey pretreated waste plastic to the moving horizontal plastic pyrolysis reactor through feeder system.
Next, heating the pyrolysis reactor, when temperature up to 500 degrees, oil gas will be produced in the pyrolysis reactor.Then oil gas will be cooled down by spray cooling system. After cooling, the oil gas would be liquefied and collected into the oil tank. And at the same time, some un-condensed gas comes into hot air circulation heating system by secondary fire retardant damper, which will be recycled for heating reactor as gas material. Exhaust gas will go to the strong spray de-dusting system for removing pollution, then let environmental gas go to the air.
Last, slag steel wire and carbon black are discharged through second sealed discharging system.
Waste plastic to oil production process
Unique advantages of plastic to oil machine
1.Safety design
The plastic to oil machine for sale is equipped with mature safety devices, such as thermometer, pressure gauge, safety valve, electric control system. Hydroseal and Vacuum system will prevent exhaust gas from going back to condensers and reactor. Thus, unnecessary accident can be avoided.
2. Energy saving
The extra gas that can not be liquid oil under normal pressure would be recycled to heat the reactor as fuel. The gas generated in the pyrolysis process has more caroric value, which will save a lot of energy for the whole working process.
3. Environment protection
All parts of plastic to oil machine are well-sealed, so air leakage can be avoided. In the dedusting system, three steps are used to dedust the hot smoke from pyrolysis reactor, which ensures the released gas is pollution-free and can be discharged into the air directly.
Unique advantages of plastic to oil machine
Final products and their application from plastic to oil machine
Pyrolysis oil
The essential product of plastic to oil machine is pyrolysis oil referred as fuel oil which is used as a fuel component for heating in fire chamber.Pyrolysis oil has flash Point between 60 to 93.3 °C. Purest quality of pyrolysis oil can be comparable to industrial diesel, and the selling price can be comparable to industrial diesel LDO( light diesel oil).
Carbon Black
The vital product of plastic to oil machine is carbon black referred as "charcoal". Carbon black has industrial and commercial use.
Final products and their application from plastic to oil machine
DOING company has more than 10 years of experience in machinery manufacturing. We can provide 500kg,1T,5T, 10T, 12T, 15T plastic to oil machine. If you have special requirements, we can also provide custom service.If you are interested in investing in this project, please contact us directly.
