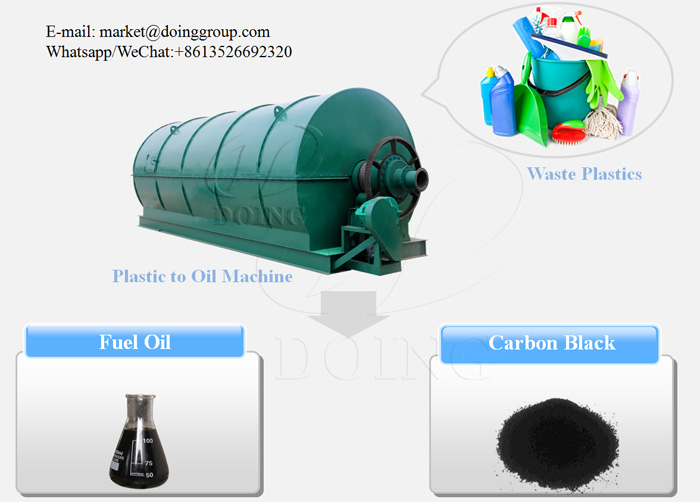

DOINGGROUP in order to ease the energy crisis and environmental pollution, has developed a recycling waste plastic to fuel oil pyrolysis plant. The recycling waste plastic to fuel oil pyrolysis plant use high temperature pyrolysis chemical reactions, converting waste plastics into fuel, carbon black and non-condensable gas.
Recycling waste plastic to fuel oil pyrolysis plant

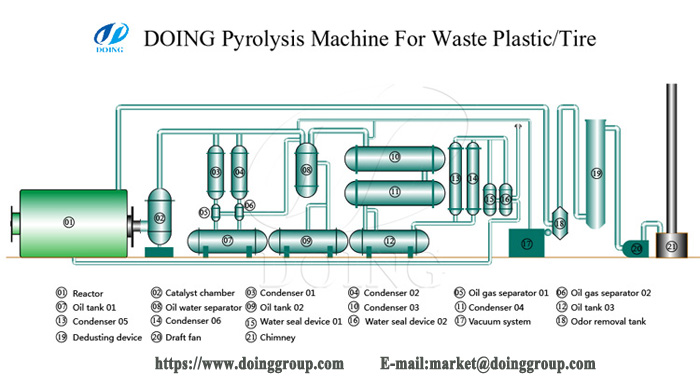

The following is a flow chart of the recycling waste plastic to fuel oil pyrolysis plant:
Flow chart of the recycling waste plastic to fuel oil pyrolysis plant
There are five main steps in the working process of recycling waste plastic fuel oil pyrolysis plant:
1. Automatic feeder automatically pushed waste plastics into the reactor.
2. The reactor was heated to a certain temperature, at which waste plastics will be cracked into oil gas.
3. Pyrolysis oil gas through the condensing system, part of them was liquefiedinto the tank, the other part of them will once again through the condensing system to increase oil yield.
4. Through tail gas and smoke cleaning system, the flue gas was clean and can be discharged directly.
5. Wait until the reactor has cooled to below 40 ° C and remove the carbon black.
DOING, as a company specializing in the production of machinery, has been continuously reforming and innovating, and its recycling waste plastic fuel oil pyrolysis plant has been sold to more than 60 countries and regions.
Installation of recycling waste plastic to fuel oil pyrolysis plant around the world
So many customers choose DOING company's recycling waste plastic to fuel oil pyrolysis plant mainly because of the following advantages:
1. Recycling of waste can be achieved,and the end products, can ease the energy crisis, such as pyrolysis fuel oil, carbon black.
2. Using 16mm thick boiler special steel and arc compression head, the recycling waste plastic to fuel oil pyrolysis plant can withstand high temperature and pressure.
3. Safety devices use oil-water separator, water seal, vacuum device. They can prevent oil and gas, tail gas backflow and provide negative pressure to ensure production safety.
4. Pinion rotation device,do not directly contact the reactor, lower power,less heat transfer, not easy to deformation.
Take PE and 10T recycling waste plastic to fuel oil pyrolysis plant as example, you could get about 9.5 ton plastic pyrolysis oil, and the daily benefits up to 4,100 US dollars. Revenue comes mainly from pyrolysis fuel oil, carbon black and combustible gas.

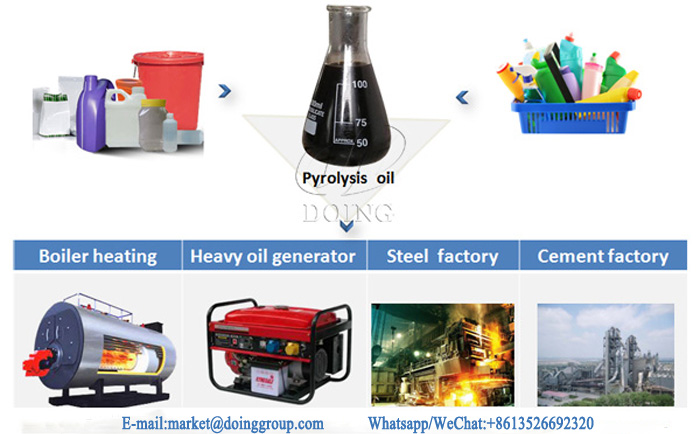

Because they have a wide range of uses in life:
1. Pyrolysis fuel oil: Mainly used in steel plants, boiler heating, heavy oil generators, cement plants.
The uses of plastic pyrolysis oil
2. Carbon black: Mainly used for pressure ball burning and refined milling, refined powder will be used for new tires, rubber soles, pigment production materials.
3. Combustible gas: Cmbustible gas will be recovered by the system re-use the reactor heating.
If you need to dispose of a large amount of waste plastic or are looking for a good investment project, please contact us. We have a professional team that can give you comprehensive guidance.
