Our waste tire pyrolysis plant adopts low temperature pyrolysis under normal atmospheric pressure and the average during pyrolysis temerature is about 380 Celsius degree.

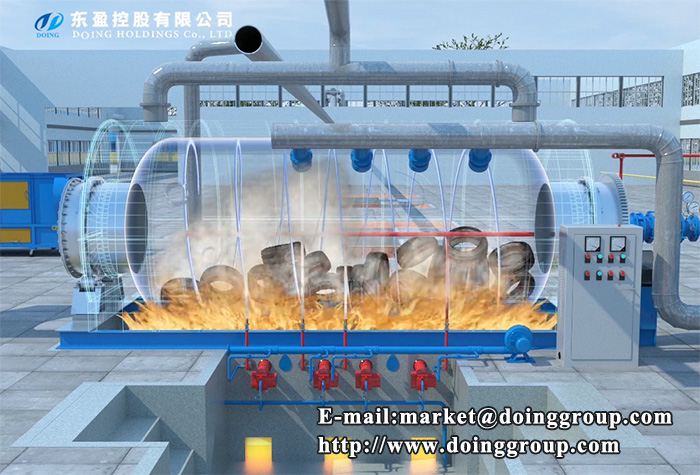

The pyrolysis reactor of waste tire pyrolysis plant is being heated
As we all know waste tires are mainly composed of rubber, carbon black and other organic components. After thermal pyrolysis, rubber and other organic components are pyrolyzed into oil gas. The residual solid substances after cracking include recovered carbon black filler, inorganic ash and steel wire. Waste tire begins to decompose at 290 Celsius degree, and the pyrolysis reaction ended at 570°.Good temperature and pressure control is the best guarantee for higher oil output and safety of the waste tire pyrolysis plant.
Temperature control
If temperature too low, waste tire cannot get fully pyrolyzed, then less oil produced. If temperature too high, the waste tire pyrolysis oil gas will run very fast out of the pyrolysis plant cooling system without being condensed, so the oil output cannot be higher either. Our waste tire pyrolysis plant is equipped with digital temperature for our customer to do the pyrolysis temperature control accordingly.
Oil gas is condensed by cooling system
Pressure control
Both pressure gauge, safety valve as well as alarm bell are installed in the oil outlet part of our waste tire pyrolysis plant. Once the pressure is over 0.04 Mpa, the bell will alarm and the safety valve will release the pressure automatically to ensure the operation safety of our waste tire pyrolysis plant.
Pressure gauge of waste tire pyrolysis plant
Except waste tire, our waste tire pyrolysis plant can also process other kinds of rubber and various kind of plastics, different raw material, the pyrolysis temperature will be different, so the temperature and pressure requirement of our pyrolysis plant also varies. For more details, you are welcome to check with us by sending the enquiry.
