Waste tyre pyrolysis plant
1.What is waste tyre pyrolysis plant?
Doing waste tyre pyrolysis plant is a machine can pyrolysis waste tyres,waste rubber and waste plastic,processing fuel oil, crude carbon black and steel wires without pollution.
Doing Waste TyrePyrolysis Plant
2.What’s the raw material of Doing waste tyre pyrolysis plant?

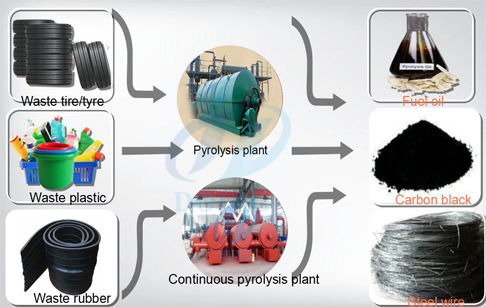

Tyre pyrolysis plant raw material
That the raw material can be produced to fuel oil, carbon black and steel with wate tyre pyrolysis plant are waste tyre/tires, waste plastic, rubber etc.
3.How does Doing waste tyre pyrolysis plant pyrolyze?
Tyre pyrolysis plant pyrolysis waste tyre to fuel oil
Firstly, put the raw material into furnace.
Secondly, burn the fuel material(coal, or wood, or natural gas, or oil ) in the combustion system.
After finishing oil producing, the temperature of reactor will come down, at the same time, carbon black will be discharged automatically.
Lastly, when the temperature falls to 100 degree celsius, worker could open the door of the reactor to discharge the steel wire, then can start another batch.
4.What can we get from Doing waste tyre pyrolysis plant?
Take 10 tons Doing waste tyre pyrolysis plant for example.
Total Output:
1. Crude oil: 45%*10t=4.5t
2. Carbon black: 35%*10t=3.5t
3. Steel wire: 13%*10t=1.3t
Cost and Income Index of Doing waste tyre pyrolysis plant:
| No. | Item | Cost of Per Batch |
| 1 | 10 tons of waste tires | 10T×USD 236/T=USD2360 |
| 2 | 0.4 tons of coal | 0.4T×USD126 /T=USD50.4 |
| 3 | Water and electricity | 200×USD0.16=USD32 |
| 4 | Workers Salary | 4×USD16=USD64 |
| 5 | Total Cost | USD2506.4 |
| NO. | Item | Income |
| 1 | Crude Oil | 10T×45%×USD709=USD3190.5 |
| 2 | Carbon Black | 10T×35%×USD82=USD287 |
| 3 | Steel Wire | 10T×13%×USD34=USD450 |
| 4 | Gross Profit | USD3927.5 |
| 5 | Daily Net Profit | USD3927.5-USD2506.4=USD1421.1 |
| 6 | Monthly Net Profit | USD1421.1×25=USD35527.5 |
| 7 | Yearly Net Profit | USD35527.5×10=USD 355275 |
5. What’s the feature of Doing waste tyre pyrolysis plant?
Safety:
1. With an auto welding machine for the reactor, it can not only greatly improve working efficiency but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak.
2. Professional heating treatment and x-ray detection chamber are especially for welding.
3. Vacuum system will prevent oil gas from going back to reactor and causing accident.
4. Professional thermometer, pressure gauge and safety valve.
5. It is dangerous to burn exhaust gas (C1 to C4) without any safety measures. In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production.
Environment friendly:
1. Well water dedusting system can avoid black smoke.
2. The exhaust gas will be recycled for heating reactor, no gas pollution
3. Every junction of the reactor is in good sealing situation with professional sealing material.
Long service life:
1. Material: Q245R special steel plate, thickness 16mm.
2. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of reactor to the max.
3. The service life of the reactor will be 8 -10 years.
Energy saving:
1. Well sealing for heating system, no gas leak and saving fuel.
2. The exhaust gas will be recycled for reactor heating.
