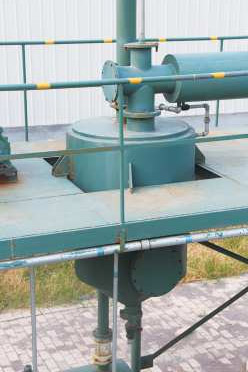

Vacuum system of pyrolysis plant
Vacuum systme is the unique device of our pyrolysis plant,which can ensure the whole plant operate under a negative pressure,and escape the hazard of high pressure in the inner system
1. Deduce pyrolysis temperature, so that shorten pyrolysis time and save energy.
2. Negtive pressure can guarantee no press in the whole system, so that guarantee safety.
3. Working with auto-feeder, when feeding material, can guarantee no oil gas come out so that protect environment.
Oil-water separator |
It is the first seal device of the whole plant, which can prevent the gas reflux to the reactor and avoid blast. |

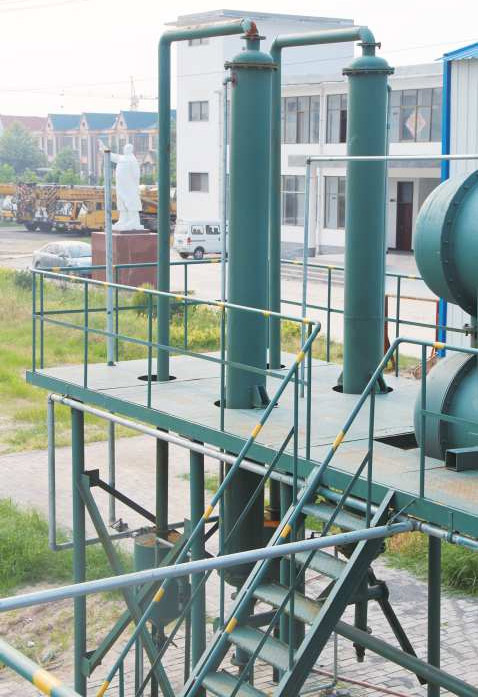

There is a water seal deive in the end of the system. Inside, the exhaust gas pipe is under water surface. Then the exhaust gas must come out from water So no gas back to working system and keep safety. The 5th generation plant is equipped with two water seal devices and two extra length cooling pipes, much safer and,at the same time,better cooling result |

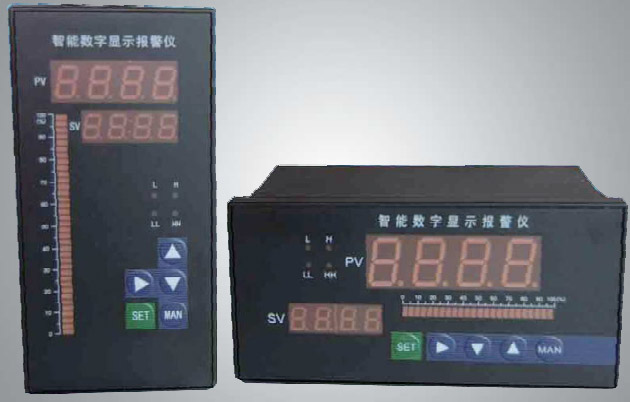

Temperature display |

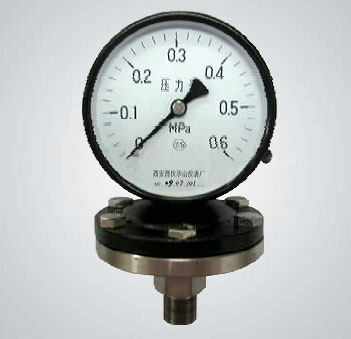

Pressure gauge |

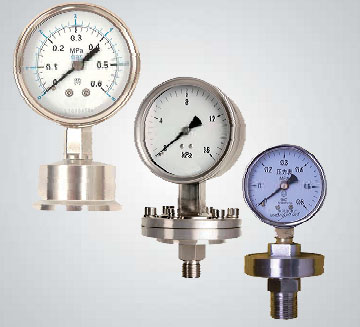

Pressure gauge |

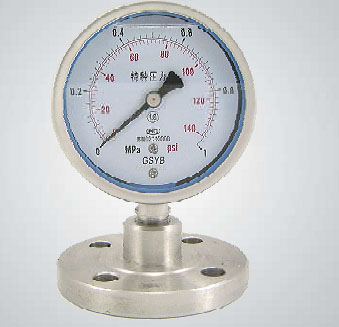

Special pressure gauge |

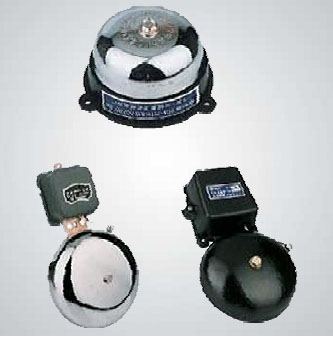

Alarm bell |
Safety valve |
Thermocouple |
