Company Information:
Henan Doing Mechanical Equipment Co, Ltd. is a professional manufacturer of tire cutting machine; we have been in this field for 10 years. With rich experiences, our engineer team helps customers design different tire cutting machine with different capacities.
About used tire cutting machine
If you want to get diesel from waste tires by pyrolysis machine, the first step is to cut the waste tires into pieces, into powder, as a result, the following four types of machine are what you need.
1. Tire sidewall cutter
Application of circle cutter
Circle cutting machine is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.
Technical parameters of circle cutter
Model | Production | Power | Size of Tires | Dimension |
QKF850 | 2.01ton/h | 2.2KW | φ825~1200mm | 1200*850*1405mm |

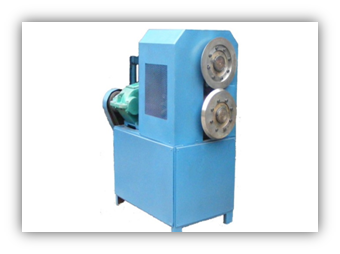

Application of rubber strip cutting machine
Cutting strips machine is used with circle cutting machine and could cut the tires without tire sides into strips.
Technical parameters of rubber strip cutting machine
Model | Production | Power | Size of Tire | Dimension |
QT380 | 1ton/h | 4KW | ≤φ1200mm | 1330×700×1580mm |
3.Block cutting machine
Application of block cutting machine
Cutting block machine is used with cutting strips machine and cut the tire strips into blocks.
Technical Parameters of block cutting machine
Model | Power | Weight | Size of Tire | Dimension |
QK200 | 7.5KW | 450KG | ≤φ1200mm | 800*810*1070mm |
4.Hydraulic Cutting Machine
Application of hydraulic cutting machine
Hydraulic cutting machine is used to process the waste tires and cut the tires into pieces and meets the demands of clients who have big size tires.
Technical Parameters of hydraulic cutting machine
Model | Power | Weigh | Size of Tire | Dimension |
QDY 700 | 5.5KW | 1300 | φ800~1200mm | 1720*750*1880mm |
