Details of waste tire recycling rubber powder machine
Waste tire recycling rubber powder machine
1.To granulate radial tires into fine rubber crumb of 5~200 mesh with steel and fiber completely recycled at ambient temperature.
2.The input is whole tires,after the processing,steel is completely separated and fiber can be separated up to 95% or above.The finish product is high and competitive in the market
3.Tight construction, small space and simple technique flow.
4. Low energy-consuming and good performance-cost ratio
5.Hight automatization, fewer labors requirement.
6.Reasonable construction,easy operation and low rate of breakdown
7.Environmental protection,no pollution(no waste gas,no waste residue,no polluted water),meeting the environmental requirement of the government.
Waste tire recycling rubber powder machine
Function:Our whole waste tires recycling to powder is used to make waste tires and rubber powder.

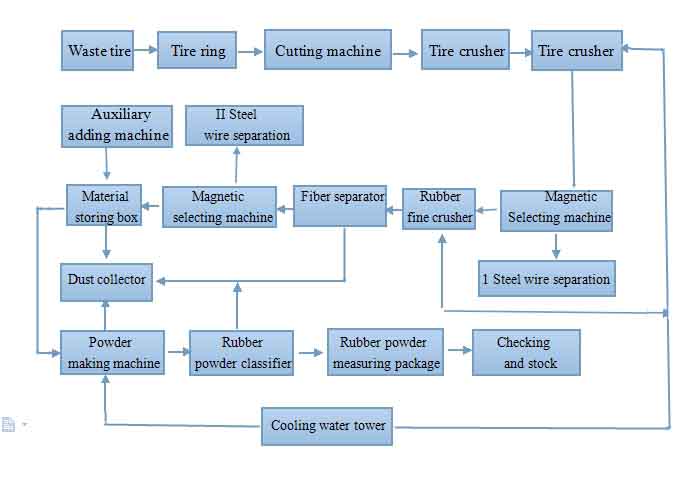

Major flow: Waste tires-circle cutting-strip cutting-block cutting-grind into zowder-magnetic separating-separation-packing-put in storage.
Waste tire recycling rubber powder machine working process
Products catalogue of waste tires recycling rubber powder machine

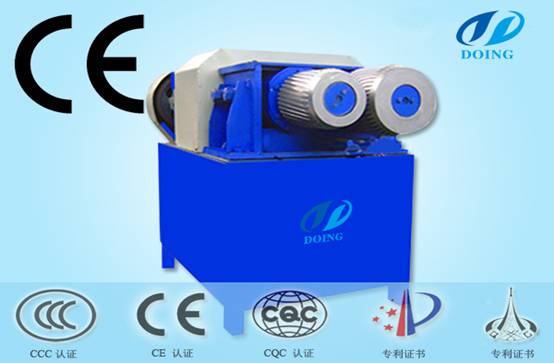

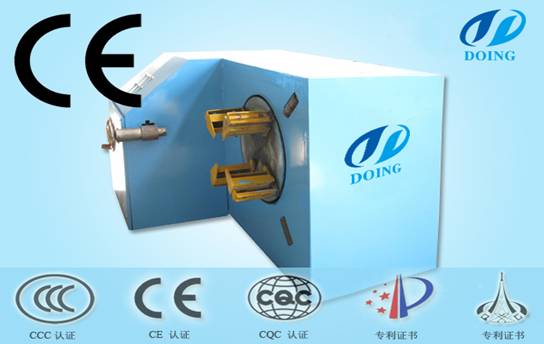

| Mode | Tire bead cutting machine | Thread rolling machine | Tire Crusher |
| Picture |
|  |  |
Function | Separate the sidewall and top of the tire, prolong the life span of the next machine’s cutter, and convenient the succeeding work | Use physical method to peel the heavy steel wire from the tire side wall under normal temperature, remain integrity of the steel. | Scarp the whole tire without tire bead to rubber strips or rubber blocks. |
| Mode | ZQTQ—F1200 | ZCTC-F-ZY | ZQTP—Z(50×50) |
| Size | 1480mm×1460 mm×1200 mm | 1330mm×1080 mm×1330 mm | 1200—2500KG/H |
| Capacity | 1200-1600KG/H | 40—60 tire/H | |
| Weight | 1.8T | 1200kg-1600kg | 2.5T |
| Power | 2.2KW | 11KW | 15KW |
