Used tyre pyrolysis plants
The energy crisis and environmental degradation are the main problems in the present days due to growing population and rapid industrialization. Around the world, there are initiatives to replace gasoline and diesel fuel due to the impact of fossil fuel crisis and hike in oil price. Millions of dollars are being invested in the search for alternative fuels. The used tyre is one by which alternative fuel can be produced and also can be tested the properties of the fuel as well as the performance of the diesel engine by using the used tyre pyrolysis plants.
Used tyre pyrolysis plants of DOING can convert waste tyres into fuel and carbon black without pollution.

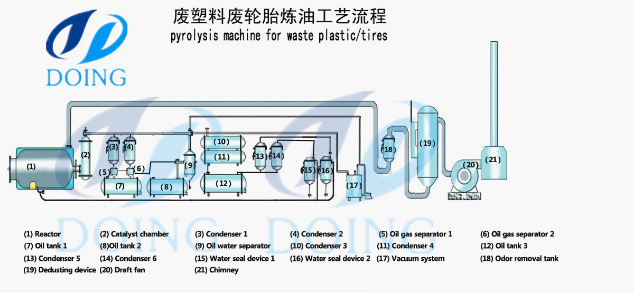

Used tyre pyrolysis plants working process :
Used tyre pyrolysis plants working process
1. Put used tyres into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the tyres can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.
Last, when the temperature falls to 100 degree Celsius, worker could put steel wire hook to reactor to take steel wire out. After all these steps, you can start another batch.
Used tyre pyrolysis plants fina product application :

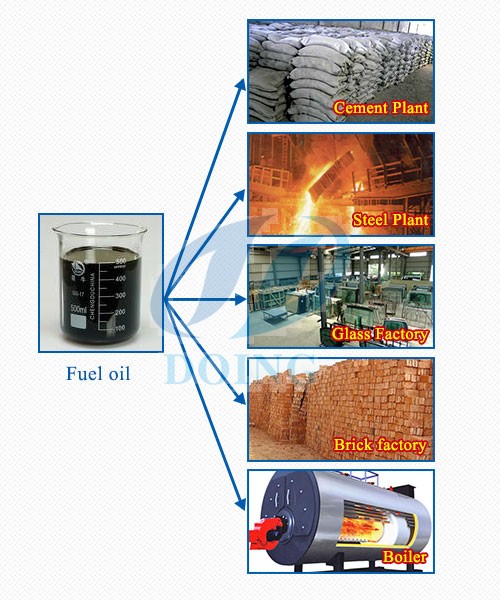

Fuel oil application
1. Fuel oil (45%-52%): Oil from used tyre pyrolysis plants can be used as industrial fuel for burning.

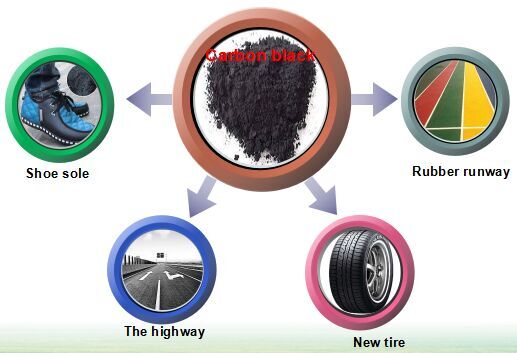

Carbon black application
2. Carbon black (30%): First, Carbon black from used tyre pyrolysis plants is crude oil . You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
3. Steel wire (30%): It can be sold to the iron and steel company directly.
4. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.
