Are you looking for proper and environmentally friendly way to dispose of waste oil? Then DY-Waste oil recycling regeneration machine is a perfet choice for oil. Our waste oil recycling regeneration machine has multiple uses and can dispose of many waste oils into diesel fuel and asphalt, and the final diesel oil yield is 80-90%.

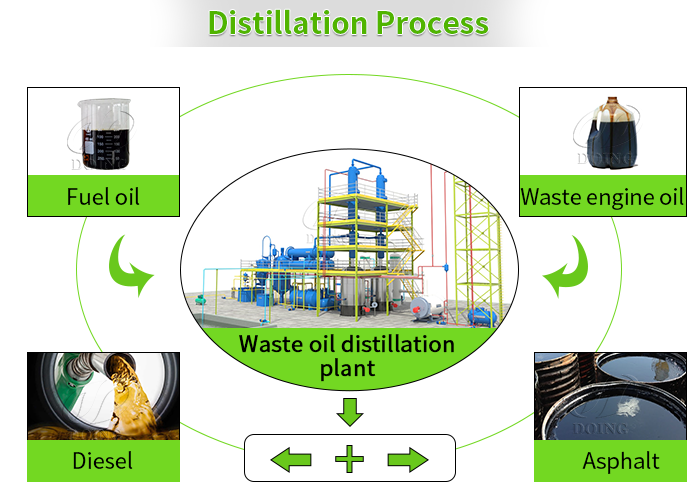

The process of waste oil to diesel plant
1.How doese the waste oil recycling regeneration machine work?
The waste oil recycling regeneration machine converts the waste oil into diesel fuel through the following steps: distillation waste oil into oil gas to remove impurities---cooling oil gas into light oil---decolorization and deodorization, etc., and the black waste oil can be refined into clean and bright non-standard diesel oil. Here is the 3D video of waste oil to diesel recycling process.
2. What scales of waste oil recycling regeneration machine doese DOING supply for sale？
To meet different requirements of different customers, we supply both small and big scales of waste oil to diesel recycling regeneration machines with the capacity from 100KG TO 14TPD. Besides that, we also support the bigger machine customization service.
Waste oil to Diesel recycling regeneration machine parameters:
| NO. | Items | Contents | |
| 1 | Raw material | Tire/plastic pyrolysis oil, waste engine oil, motor oil, used luble oil, crude oil, liquid oil sludge, etc. | |
| 2 | Outputs | Diesel, asphalt, syn-gas | |
| 3 | Machine types | Skid-mounted type | Normal design |
| 4 | Capacity | 100KG/500KG | 1TPD, 5TPD, 7TPD, 10TPD, 14TPD, etc. |
| 5 | Diesel yield | 80-90% | |
| 6 | Material of Reactor | Q245R/345R boiler plate, Stainless steel | |
| 7 | Thickness of Reactor | 14/16mm | |
| 8 | Safety standard | Pressure vessel standard | |
| 10 | Total power | 24.5KW | |
| 11 | Mode of cooling | Circulating water cooling | |
3. What scales of waste oil recycling regeneration machine does DOING supply for sale?
To meet different requirements of different customers, we supply both small and big scales of waste oil to diesel recycling regeneration machines with the capacity from 100KG TO 14TPD. Besides that, we also support the bigger machine customization service.
4. Waste oil recycling regeneration machine final products and their applications
(1)Diesel---high purity, bright color can be used in low-speed and heavy-duty diesel engines, such as heavy machinery, large agricultural machinery, mining machinery, generators, boilers, trucks and ships etc.; or directly used as a heating fuel;
(2)Asphalt ---It can be paved directly or sold to an asphalt factory for re-smelting.
5. Why to buy waste oil recycling regeneration machines from DOING Company?
After more than twelve years of technological innovation and precipitation, our waste oil recycling regeneration machine has been widely acclaimed. The following are the unique advantages of our equipment:

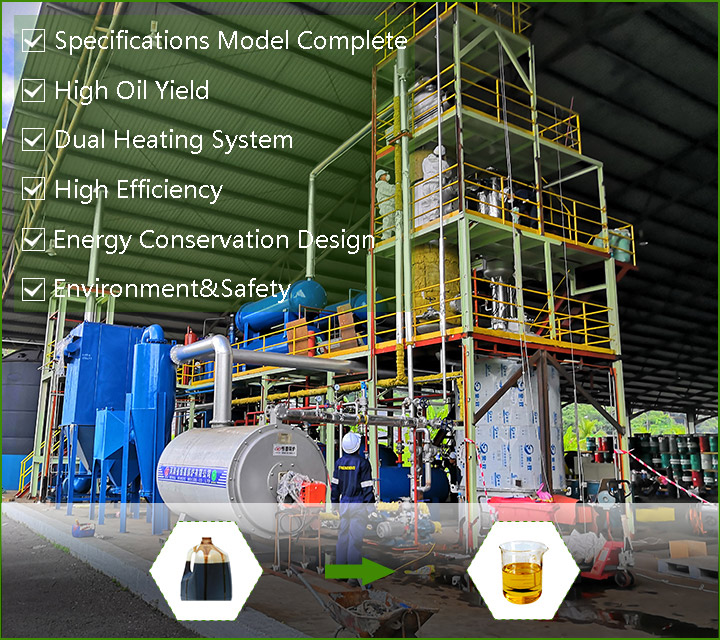

Advantages of waste oil distillation plant
A. Rapid heating system
The rapid heating system of waste oil recycling regeneration machine uses circulating heating medium and fuel to heat at the same time, saving fuel energy investment and speeding up waste oil distillation.
B. Horizontal condenser design
The waste oil recycling regeneration machine adopts a horizontal condenser design, which increases the oil-gas contact area and improves the cooling effect, which can increase oil yield.
C. Three machine designs to choose
Henan DOING Company has three designs for waste oil recycling regeneration machines: the free-installation skid-mounted design, the acid-base design with favorable price, and the new catalytic technology with a high degree of automation.
D. Safety and environmental protection designs
The waste oil recycling regeneration machine is very tightly sealed, equipped with safety valves and dust removal systems to ensure zero pollution throughout the production process.
