Waste tyre to fuel oil pyrolysis plant
Waste tyre to fuel oil pyrolysis plant adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China. adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China.The waste tyre to fuel oil pyrolysis plant can pyrolysis waste tyre to fuel oil ,carbon black and steel wire.
Detailed product description of Waste tyre to fuel oil pyrolysis plant

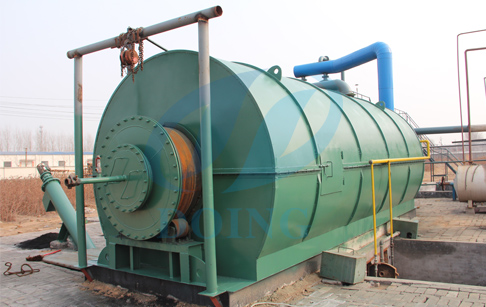

Tyre to fuel oil pyrolysis plant
1)48%--52% High oil yield
2)Pollution-free
3)Advanced cooling system
4)Good after-sales service
5)Certification: ISO,SGS,CE
Working process of Waste tyre to fuel oil pyrolysis plant
Waste tyre to fuel oil pyrolysis plant pyrolysis waste tyre to fuel oil and carbon black
Auto-feeder load the whole waste tires into reactor, seal the reactor and heat the reactor by burning the fuel(coal,wood,natural gas,oil) in the combustion system. there is a thermocouple installed the oil gas outlet to test the oil gas temperature,when thermocouple show certain temperature, the oil gas will come out, then go through the cooling system to become to oil. At same time,there are some gas(CH4,C2H6,C3H8,C4H10 and H2) can not be cooled under normal pressure,they will be recycled back to combustion system to burn as energy.the dust and sulfur gas will be removed by the dust removing system.after the oil gas run out, there are slag(carbon black) inside of the reactor, DOING GROUP Company use the automatic discharging system to remove it. Then DOING use auto-feeder to remove the tire wire steel. usually the 10 tons capacity need about 16 hours to finish the whole process.

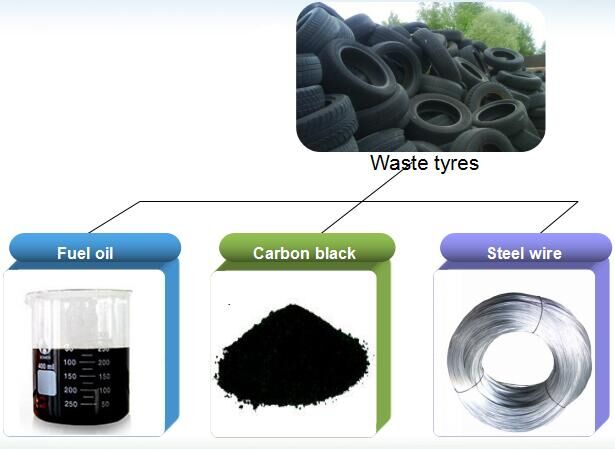

Final product of Waste tyre to fuel oil pyrolysis plant
Waste tyre to fuel oil pyrolysis plant final product
Tyre crude oil 48%-52%, 30% Carbon black, 15% Tire wire steel and the rest is the waste gas.
Product application of Waste tyre to fuel oil pyrolysis plant

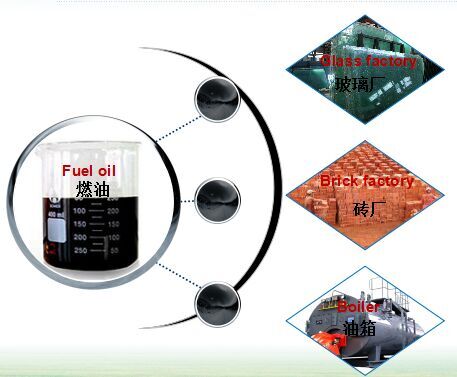

1. Tyre crude oil usage(where need the oil as fuel)
Tyre fuel oil application
A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

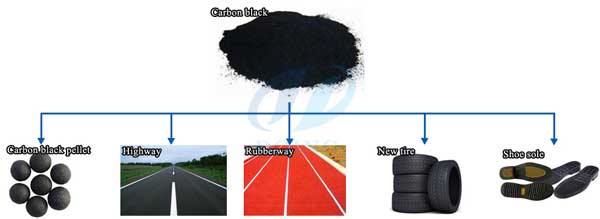

2. Carbon black usage
Carbon black application
As the waste tire carbon black there are ash inside so this quality is not so good. Until now our technology can use some ways to make the carbon black to briquette, which can be sold as the industry coal.
3. Tire wire steel usage
This can be sold to the steel making factory.
4. The waste gas(CH4,C2H6,C3H8,C4H10 and H2)
As these gas can not be cooled under the normal pressure,besides they are all combustible gas, which is dangerous to storage. after it produce we let the gas back to the combustion system to burn as energy. This will safe and save your fuel cost.
Technical parameter of Waste tyre to fuel oil pyrolysis plant

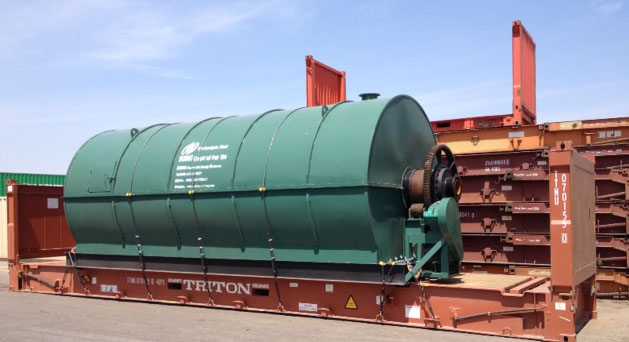

Waste tyre to fuel oil pyrolysis plant
| Technical parameter of Waste tyre to fuel oil pyrolysis plant | ||||
| Items | Contents | |||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste tyre | Waste tyre | Waste tyre |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
