Scrap tyre recycling plant
Scrap tyre recycling plant adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China.Scrap tyre recycling plant adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China.The scrap tyre recycling plant can pyrolysis waste tyre to fuel oil ,carbon black and steel wire.
Detailed Scrap tyre recycling plant description :
1.scrap tire is great treasure
2.get fuel oil, carbon black from scrap tire
3.get a clean world
4.our scrap tyre recycling plant can do it
Scrap tyre recycling plant Working process:
Scrap tyre recycling plant recycling scrap tyre to fuel oil
This machine can pyrolysis the waste tyre and waste plastic. End product: crude oil,steal wire and carbon black.And The whole operation process does not have a bit pollution.
The pyrolysis process and principle of high oil yield scrap tyre recycling plant:

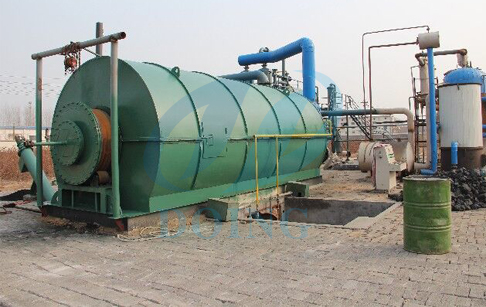

Scrap tyre recycling plant
Open the feeding door of reactor then put scrap tyres into the body of the reactor.Then the body of the reactor will be heated up by the fuel under it.
The scrap tires will decomposed when it heated up to a 160C in the reactor. As for the whole operation of the reactor, we will control the temperature on 500℃.The decomposed tires transformed into oil gas. Waste gas will be processed in the emissions scrubber, transmitted by the pipe on the top of the cracking reactor, by the processing of emissions scrubber the harmful gas will changed into clean air then release into the air.
When crude oil get through the gas separate the Impurities will be filtrated, so that crude oil can be refined .Crude oil get through the depositing tank to the cooling pool for cooling in it, then transform into liquid. Liquid crude oil will delivered to tanks for store, and the exhaust gas from the crude oil in the tank will transported to exhaust gas recycle system then transported to the bottom of the cracking reactor as fuel to heat up the the cracking reactor .

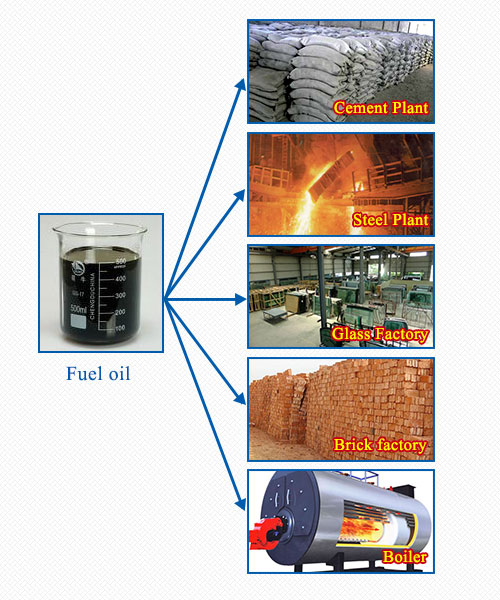

Fuel oil from scrap tyre are used in below industries
Fuel oil application
A. power plant factory B. glass factor C. cement factory D. ceramic factory E. aluminum factory F. boiler factory G. central heating factory H. painting factory

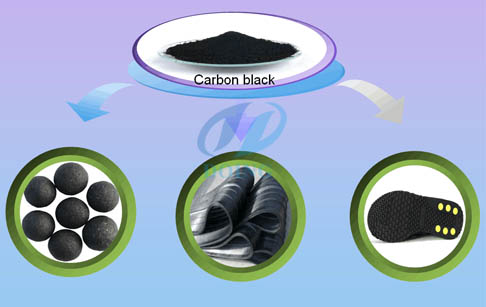

Carbon black from waste tyre are used in below industries.
Scrap tyre recycling plant
A. electric cable jacketing
B. conveyor ban
C. hose and doormat
D. black nylon bag
E. rubber additive
F. automatic spare parts
G. heat isolation
H. black colorant in rubber materials
I. plastic pipes
J. industries rubber products
K. fire fighting steel wire from waste tyre can be re-sale to steel factory.
Profit calculation
Take scrap tyres recycling plant ipment processing 10 tons for example
No. | Item | Cost of Per Batch |
1 | 10 tons of waste tires | 10T×1500RMB/T=15,000RMB |
2 | 0.4 tons of coal | 0.4T×800RMB/T=320RMB |
3 | Water and electricity | 200×1.00RMB=200RMB |
4 | Workers | 4×100RMB=400RMB |
5 | Total Cost | 15,920RMB |
NO. | Item | Income |
1 | Crude Oil | 10T×45%×4,500RMB=20,250RMB |
2 | Carbon Black | 10T×35%×520RMB=1,820RMB |
3 | Steel Wire | 10T×13%×2200RMB=2,860RMB |
4 | Gross Profit | 24,930RMB |
5 | Daily Net Profit | 24,930RMB-15,920RMB=9,010RMB |
6 | Monthly Net Profit | 9,010RMB×25=225,250RMB |
7 | Yearly Net Profit | 225,250RMB×10=2,252,500RMB |
Product Details:
Place of Origin | Henan, China (Mainland) |
Brand Name | Doing |
Model Number | DY-1-5/8/10 |
Type | Scrap tyres recycling plant |
Tire Machine Type | Tyres Recycling plant |
welder | 6 sets auto-welder |
technology on reactor | crack detection technology |
thickness | 16 mm |
Minimum Order Quantity: | 1 Set/Sets according to customers' require |
Port: | Tianjin or Qingdao |
Packaging Details: | according to customers' require |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10 Set/Sets per Month according to customers' require |
| ? |
