The pyrolysis reactor is the main engine of the pyrolysis plant and the most important part in the whole pyrolysis production line. Its type determines the safety, sealing and environmental protection of the equipment. There are three common types of pyrolysis reactor: flat head design, conical head design, and the ellipsoid head design. And the safety performance of the pyrolysis reactor head is determined by the ratio of the length and length of the shaft.

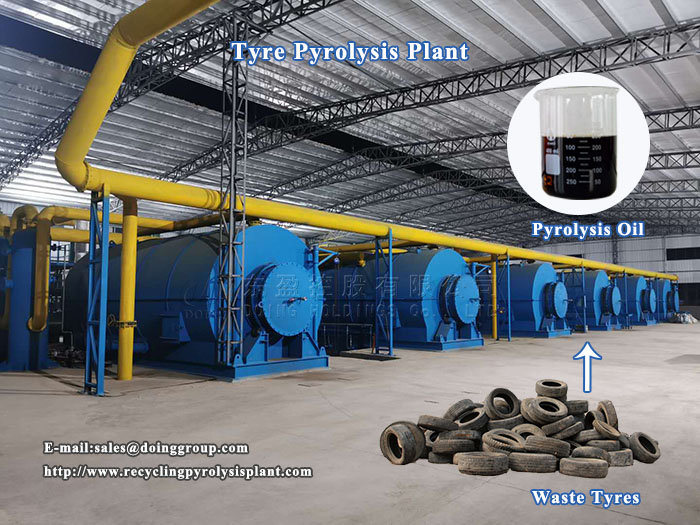

Pyrolysis plant
DOING, as a mature manufacturer in the yrolysis reactor industry for more than eleven years manufacturing and installation experience, would like to tell you their characteristics and differences, and how to choose a good reactor.
1. The flat head design
The flat head design pyrolysis reactor is made of several steel plates, which requires higher welding technology, in order to avoid high temperature heating still ensure its sealing. After all, safety is a prerequisite for pyrolysis plant projects.

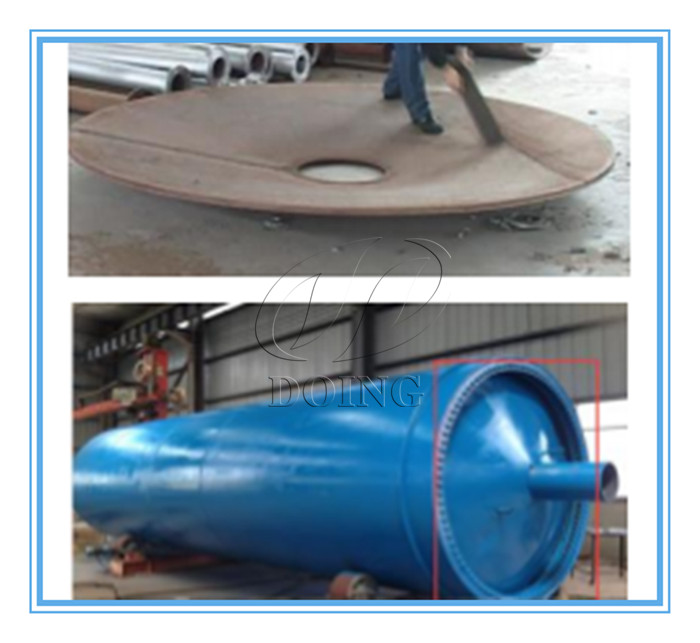

The flat head design pyrolysis reactor
And after detection, the flat-head design is the largest ratio of long and short axes among the three kinds of pyrolysis reactor head, so it can be seen that the force of the flat-head design is the worst, and it needs to have enough thickness if used.
2. The conical head design
The ratio of long axis to short axis of conical head is slightly higher than that of ellipsoid head, but much lower than that of flat head. Therefore, its compression capacity is in the middle, much better than the flat head. But because this design is not commonly used, and can not use automatic welding, few people mention it.
3. The ellipsoid head design
The ellipsoid head has the lowest axial ratio of the three designs, so its compression capacity is the strongest.
If you have questions about the ratio of long and short axis, or how to judge the quality of the reactor from the ratio of long and short axis, you can directly leave a message to DOING, in order to give detailed answers.

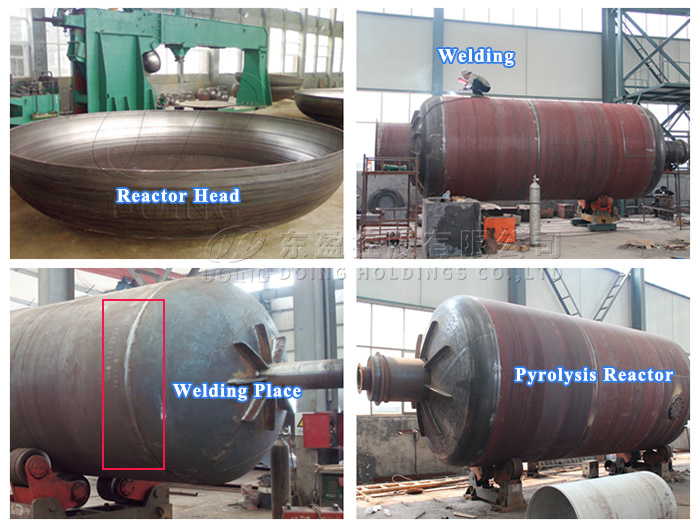

The ellipsoid head design pyrolysis reactor
The head of DOING pyrolysis reactor adopts the head of the pressure vessel standards, which is pressed and formed in the head factory at one time. This kind of head has particularly strong compression resistance. The connection between the head and the reactor is welded by the automatic submerged arc welding center machine. The connection between the reactor head and the reactor is completely integrated, the same as the middle connection of the reactor. So there will be no weld or smoke leakage problems, so as to guarantee its highest safety degree.
From the above, you should already know the three pyrolysis reactor designs on the market, along with their features and advantages. If you have further questions about this and how to choose the best design, please contact the DOING Business manager so that you can get professional answers from them.
