Tyre pyrolysis oil is a good fuel for industrial heating, but contains more impurities, heavier color. However, with waste oil distillation plant, we can improve tyre pyrolysis oil quality by distillation, cooling, decolorization and flavor removal for wider uses and better benefits.
There are mainly two methods to turn tyre pyrolysis oil to diesel: catalytic distillation and pickling alkali washing. DOING waste oil distillation plant mainly adopts the newest catalytic distillation technology because it has higher efficiency and less or even no pollution to the environment.
Then let us have a detailed introduction of tyre pyrolysis oil refining process:

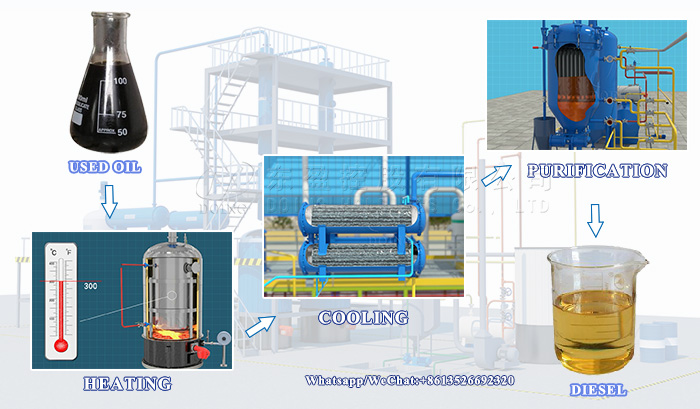

Tyre pyrolysis oil refining process
1. Heat conduction oil and condensate pre-treatment
Start the oil injection pump and send the oil into the expansion tank. The heat conducting oil gradually fills the whole system through the expansion tube by its own weight. Turn on the cooling circulation pump to make the condensate circulate normally in the horizontal condensers.
2. High temperature distillation
The tyre pyrolysis oil is transported to the distillation reactor by oil pump, and the reactor is heated by heat conduction oil and combustion machine at the same time. In the high temperature and no oxygen environment, oil gas will be produced after the distillation reactor reaches a certain temperature.
3. Condensed oil
Heat conduction oil heats the distillation reactor to 250℃ and the moisture and emulsion will be fully volatilized; oil gas passes through the catalyst tower and buffer tank into the horizontal condenser, condensed oil will be stored in the first distillate tank.
Heat conduction oil and combustion machine continues to heat the distillation reactor to 380-400℃, there will be oil gas volatilized out; then oil gas goes into the horizontal condenser through the catalyst tower and buffer tank, condensing into oil stored in the second distillate tank.
4. Flue gas treatment
The flue gas produced by heat conduction oil furnace and waste oil distillation plant reactor is treated by water film dust removal and discharged into the atmosphere, which meets the national discharge standards.
If you want to get higher quality diesel, DOING can also provide you with the decolorization and deodorization system to refine the oil deeply. The obtained oil goes into the decolorizing tank, using white clay to improve its color. And after going through the decolorized fuel tank and oil filter pump, we can obtain non-standard diesel with high quality and bright color, which can be widely used in heavy machines, generators, boilers, etc. for huge profits.

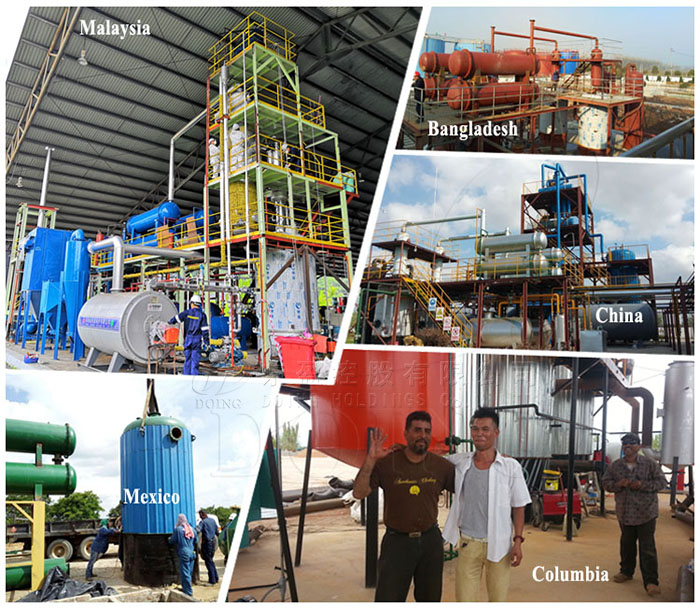

DOING waste oil distillation plant installation pictures
DOING has specialized in manufacturing solid waste pyrolysis machines, pyrolysis oil/waste oil distillation plants and other environmental protection equipment for 13 years, whose machines have been exported to 90+countries. If you are interested in recycling pyrolysis oil/waste oil to diesel or want to learn more information about waste oil distillation plants, welcome to contact us!
